The Complete Guide to Insulated Metal Panel Installation: Connections, Trim, Staging, Sequence, and Everything In Between
Use TCG.ai to Get Your
IMP Install Estimate in 30 Seconds
Upload your floorplan & elevations and let our proprietary AI do the rest.
Insulated metal panels (IMPs)are one of the fastest-growing envelope systems in commercial construction for good reason. A single factory-fabricated component replaces what traditionally required separate structural cladding, insulation, vapor barrier, and weather barrier installations — eliminating multiple trade overlaps and compressing enclosure timelines by weeks. The Metal Construction Association's selection guide estimates that a four-person crew working an eight-hour shift can install up to 5,000 square feet of IMPs on a standard industrial project. That speed is real — but it's only achievable when the installation is planned, sequenced, and executed correctly.
The uncomfortable truth about IMP installation is that the product's performance ceiling is set entirely by the quality of the field work. A high-performance PIR-core panel with an R-value of 32 and a factory-applied vapor barrier delivers none of its advertised thermal performance if the joints aren't properly engaged, the sealant placement is wrong, or the structural framing is out of tolerance. As Roofing Magazine's IMP installation overview puts it, IMPs form an all-in-one system where a single component serves as rainscreen, air barrier, moisture barrier, and thermal insulation — but that integration only works when every connection, every trim piece, and every sealant bead is executed to the manufacturer's specification.

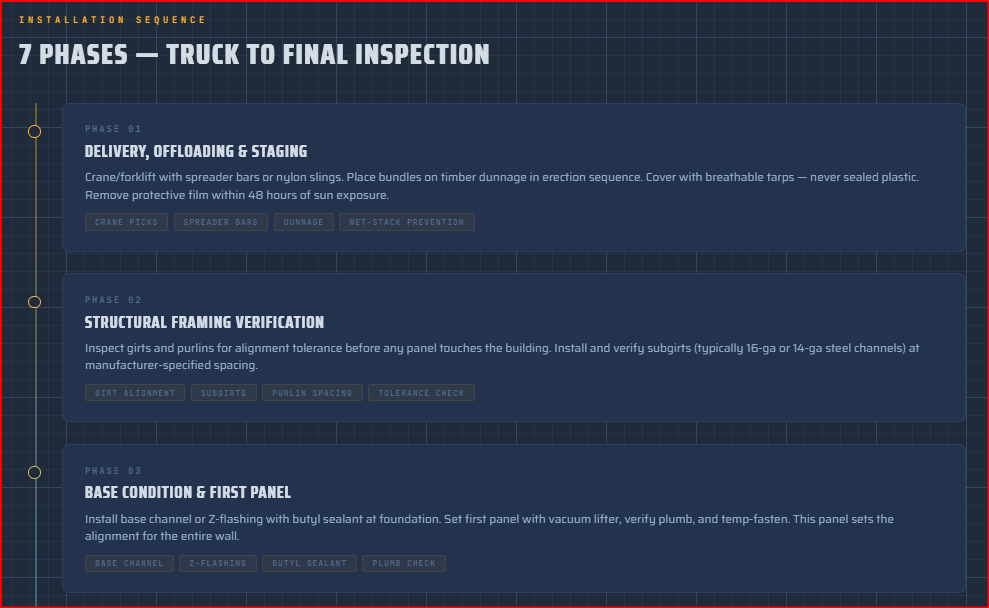

This guide covers every phase of the IMP installation process — from the moment panels arrive on a flatbed truck through final trim and sealant inspection. It's written for general contractors, developers, project managers, architects, and anyone who needs to understand what a professional IMP installation actually looks like in the field. At Terrapin Construction Group, we've installed over one million square feet of insulated metal panels across 38 states. This article reflects what we've learned from that volume of real-world installation experience.
Phase 1: Delivery, Offloading, and Staging
IMP installation begins long before the first panel touches the building. Panels are factory-manufactured, precision-cut, and shipped in banded bundles on flatbed trucks. How they're offloaded, staged, and stored on the jobsite directly affects whether they arrive at the building face in installable condition — or with damaged edges, dented skins, and compromised joints that create problems for the entire project.
Offloading Equipment and Technique
IMP bundles are heavy and long. A bundle of 4-inch panels at 40 feet in length can weigh several thousand pounds. Offloading requires a crane, forklift with extended forks, or a combination of both — and the lifting equipment must be positioned to support the full length of the bundle without allowing deflection or bending that could crack the foam core or damage the metal skins. The IMP Alliance's METALCON seminar on handling best practices emphasizes that improper offloading is one of the most common sources of panel damage on IMP projects. Nylon slings or padded spreader bars should be used — never chains directly against the panel skins.
FALK, one of the IMP manufacturers TCG works with, operates its own trucking fleet specifically to maintain quality control through delivery. But regardless of manufacturer, the offloading protocol is the same: lift bundles from both ends simultaneously, avoid point loading, and place bundles on level ground with timber dunnage underneath to keep panels off the dirt and allow air circulation beneath the stack.
Staging and Storage
Staging is not just "putting panels somewhere on the jobsite." Panel bundles need to be staged in the sequence they'll be installed — which means the installation crew, the project superintendent, and the crane operator need to have agreed on an erection sequence before the truck arrives. Panels staged out of order create double-handling, crane repositioning, and lost productivity. On large projects, staging can consume significant site area, and the staging plan needs to account for crane reach, boom swing radius, and pedestrian/vehicle traffic routes.
Storage duration matters as well. IMP manufacturers universally recommend that panels not be stored in direct sunlight with their protective film in place for more than 48 hours, as the adhesive can bake onto the metal skin and become extremely difficult to remove. If panels must be stored on site for extended periods, they should be covered with breathable tarps — not sealed plastic, which traps moisture and creates condensation between panels in the bundle. This condition, known as "wet stacking," causes corrosion and staining on the metal skins that is visible after installation and can void the paint warranty. The Green Span Profiles installation guide identifies wet stacking as one of the most costly and most preventable IMP installation mistakes.
Phase 2: Structural Framing Verification
Before a single panel is lifted, the secondary structural framing — the girts (horizontal members for wall panels) and purlins (horizontal members for roof panels) — must be inspected and verified for alignment tolerance. This is the step that separates professional IMP installers from crews that are learning on the job, and it's the step that most frequently creates downstream problems when it's skipped or done inadequately.

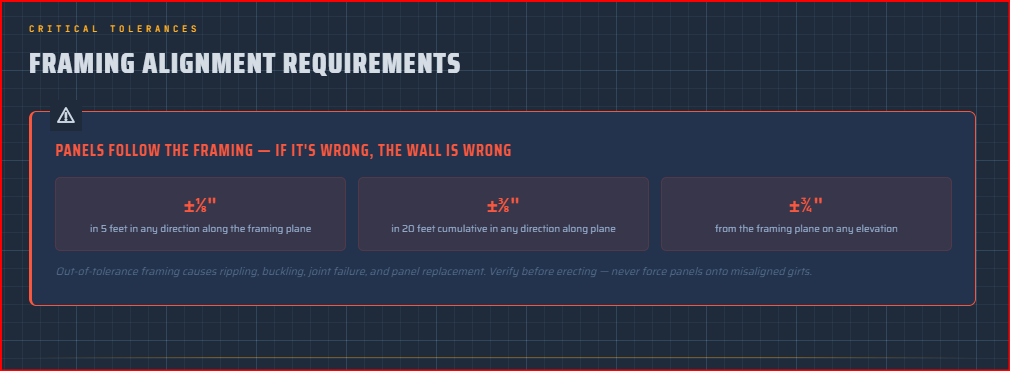

Why Framing Tolerance Is Critical
IMPs are semi-rigid panels. They will conform to the shape of whatever structural member they're attached to. If a wall girt is bowed, twisted, or out of plane, the panel will follow that contour — resulting in visible rippling, buckling, or waviness on the finished wall face. More critically, misaligned framing can prevent panels from engaging properly at the tongue-and-groove side joint, creating gaps in the air and vapor barrier that defeat the panel's entire performance value. According to Steel Building Insulation's IMP installation reference, typical structural alignment for vertically installed panels requires wall girts to be within plus or minus one-eighth of an inch in 5 feet in any direction along the framing plane, plus or minus three-eighths of an inch in 20 feet cumulative, and plus or minus three-quarters of an inch from the framing plane on any elevation.
The same source notes that panels installed on misaligned framing can lead to rippling, buckling, or the need for panel replacement — and that installers who try to force panels onto out-of-tolerance framing by hammering, using excessive fastener torque, or employing other improvised methods risk delamination, thermal blistering, and permanent panel damage.
Subgirts and Secondary Framing
In many IMP installations, particularly on pre-engineered metal buildings, the primary structural girts are supplemented with subgirts — intermediate horizontal members that provide additional panel attachment points between the primary girts. Subgirt spacing is determined by the panel manufacturer's load tables and depends on panel thickness, panel span, wind load requirements, and whether the installation is vertical or horizontal. Typical subgirt spacing ranges from 4 to 8 feet on center for wall panels, though cold storage applications with thicker, heavier panels may require tighter spacing.
Subgirts must be installed level, plumb, and in the same plane as the primary girts. They are typically light-gauge steel channels (16-gauge or 14-gauge) attached to the primary structural columns or girts with clip angles and structural fasteners. The subgirt layout is usually shown on the IMP shop drawings and erection drawings — not on the structural steel shop drawings — which means coordination between the structural steel erector and the IMP installer is critical. If subgirts are installed by the steel erector, the IMP installer needs to verify alignment before beginning panel erection. If the IMP installer is responsible for subgirts, that scope needs to be clearly defined in the subcontract. At TCG, we typically self-perform subgirt installation as part of our IMP scope because we know our tolerance requirements and can verify alignment in real time.
Phase 3: Base Condition and First Panel
The base of the wall — where the first panel meets the foundation or slab — is the most critical detail in the entire IMP wall installation. Every manufacturer's installation guide devotes significant attention to base conditions because water management, air sealing, and panel alignment all converge at this point.
Base Trim and Flashing
The base condition typically involves a formed metal base channel or Z-flashing that is attached to the foundation wall or slab edge before panels are installed. This base trim serves multiple functions: it establishes a level starting line for the first panel, it provides a drainage path for any water that enters the exterior panel joint, and it creates a transition between the concrete foundation and the metal panel skin. As the Steel Building Insulation technical guide notes, the base detail must be compatible with the finish grade — the bottom of the panels should never be below grade, as this leads to premature corrosion of the panel skins and paint system failure.
There are several common base conditions. A notched slab features a keyway cast into the concrete where the panel sits, with back-flashing to drain water away from the wall. A flush condition has wall girts inset by the panel thickness so the outer face of the panel is flush with the slab edge. A cantilevered condition has the panel extending below the girt line and overhanging the foundation. Each requires specific trim profiles, sealant placement, and fastener patterns — and the installer must confirm which condition the design documents specify before beginning installation.
Butyl sealant placement at the base is critical and position-specific. The sealant must be applied to the correct face of the trim at the correct location before the first panel is set — because once the panel is in place, the base joint is permanently concealed and cannot be reworked without removing the panel.
Setting the First Panel
The first panel establishes the alignment, plumb, and plane for every subsequent panel on that wall elevation. If the first panel is out of plumb or not properly seated in the base channel, every following panel will compound that error. The first panel is lifted into position using vacuum lifters attached to a crane or boom lift, positioned in the base channel, checked for plumb with a level, and temporarily fastened to the structural framing. The panel is not permanently fastened until plumb and alignment are confirmed — and on projects where aesthetic quality is paramount, the first panel may be checked with a transit or laser.
Phase 4: Panel Erection and Joint Engagement
Once the first panel is set and verified, the installation proceeds sequentially along the wall elevation. Each subsequent panel is lifted, positioned, and engaged with the preceding panel at the tongue-and-groove side joint before being fastened to the structural framing.
Lifting Equipment
Panel lifting is performed with vacuum lifters (also called suction cups), which attach to the exterior face of the panel and allow the crane operator to position the panel vertically with precision. FALK, Metl-Span, and other manufacturers supply or recommend specific vacuum lifting systems designed for IMP dimensions and weights. Smaller panels (under approximately 10 feet in length) can be handled manually by two to three workers using hand-held suction cups, but any panel over 10 feet should be crane-lifted for safety and to prevent edge damage from manual handling. The Green Span Profiles installation guide identifies not having proper lifting equipment on-site as a leading cause of installation delays and panel damage.
Joint Engagement
The tongue-and-groove side joint is the heart of the IMP system's weather and air barrier performance. Each panel has a male tongue on one edge and a female groove on the other. When panels are engaged, the tongue slides into the groove to create a continuous, interlocking joint that functions as both a structural connection and a sealed weather barrier. Factory-applied butyl sealant is typically present in the joint, and additional field-applied sealant is required at specific locations per the manufacturer's installation guide.
Proper joint engagement requires panels to be aligned, level, and brought together smoothly without excessive force. If a panel does not engage easily with the preceding panel, the most likely cause is framing misalignment — not a defective panel. Forcing engagement by hammering, prying, or applying excessive torque to fasteners will damage the panel joint, compromise the sealant, and create a latent leak path that may not become apparent until the building is under pressure from wind or HVAC operation. This is why the framing verification in Phase 2 is so critical — it prevents the problems that manifest in Phase 4.
Fastener Systems

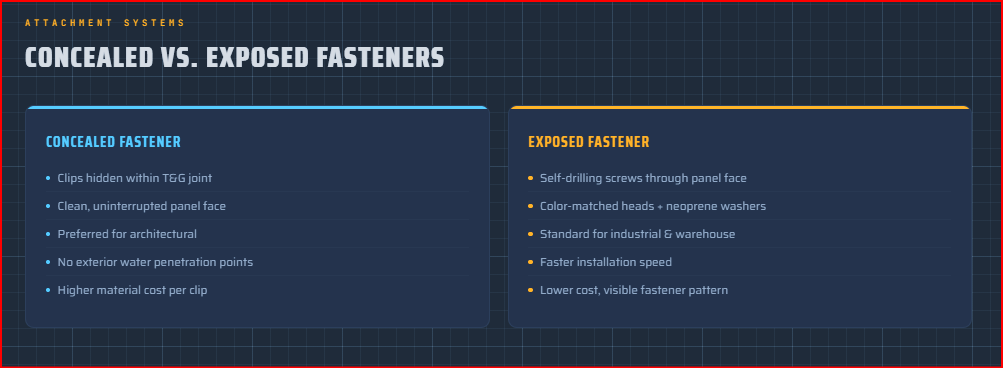

IMP wall panels use one of two primary fastener systems: concealed fasteners or exposed fasteners. Concealed fastener systems use clips that are attached to the structural girt through the panel joint — the clip is hidden within the engaged tongue-and-groove connection and is not visible on the finished exterior or interior face. This is the preferred system for architectural applications where a clean, uninterrupted panel face is desired. Exposed fastener systems use self-drilling or self-tapping screws driven through the panel face into the structural girt, with color-matched heads and neoprene sealing washers to prevent water infiltration at the fastener penetration.
Fastener selection, spacing, and patterns are specified by the panel manufacturer's engineer based on the project's wind load requirements, building height, panel span, and geographic location. Fastener schedules are typically included in the IMP shop drawings and must be followed exactly — over-fastening can dimple the panel face and create visible fastener pattern ghosting, while under-fastening can result in panel blow-off in high-wind events. The MBCI fastener catalog and the Metal Construction Association's IMP wall specification both provide detailed guidance on fastener types, head configurations, and sealing washer requirements for different panel profiles and load conditions.
Phase 5: Trim, Flashing, and Accessories
Trim and flashing are not cosmetic afterthoughts — they are structural and weather-critical components of the IMP envelope system. Trim pieces seal the transitions between panels and other building elements: corners, window heads and jambs, door frames, parapet caps, eave conditions, and base details. Every transition is a potential leak path, and the trim installation must be executed with the same precision as the panel installation itself.
Common Trim Profiles
The typical IMP installation requires a significant inventory of formed metal trim profiles. Outside corner trim wraps the building corners where two wall elevations meet. Inside corner trim is used at re-entrant corners. Head and jamb trim frames every window, door, and louver opening — and these are typically two-piece assemblies where the interior portion must be installed before the panels and the exterior cap is installed after. Sill trim at the bottom of window openings must be sloped to drain water away from the panel face. Parapet cap trim covers the top of the wall where it terminates above the roof line. Eave trim transitions the wall panels to the roof system. Base trim, as discussed in Phase 3, establishes the starting condition for the entire wall.
Every trim piece requires butyl tape or gun-grade sealant at its interface with the panel face, and every trim lap joint requires sealant to maintain weathertightness. The MBCI tape and sealant catalog details the specific products and application methods for different trim conditions, including the number of sealant beads required at each joint type. Trim installation is labor-intensive and detail-oriented — on projects with high opening density (retail, medical, restaurant), trim and accessory work can represent 25% or more of total installation labor hours.
Sealant Types and Placement

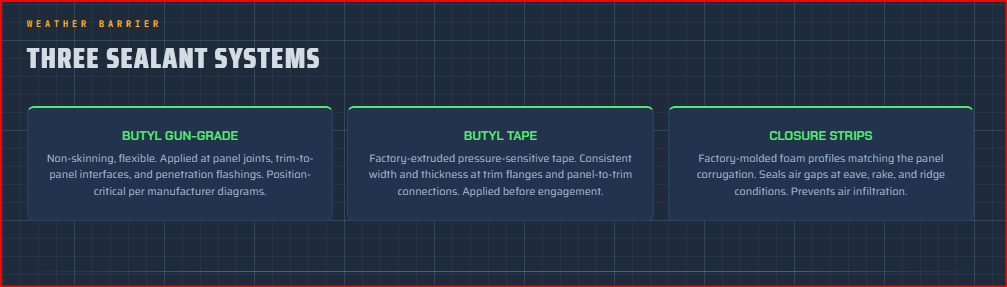

IMP installations use three primary sealant types. Non-skinning butyl sealant (gun-grade) is applied at panel joints, trim-to-panel interfaces, and penetration flashings where a flexible, permanent seal is required. Butyl tape is a factory-extruded pressure-sensitive tape used at trim flanges and panel-to-trim connections where a consistent sealant width and thickness is needed. Closure strips — factory-molded foam profiles that match the panel rib pattern — are used at eave, rake, and ridge conditions to seal the corrugated air gaps at panel terminations.
Sealant placement is position-critical and manufacturer-specific. Each panel manufacturer publishes detailed sealant diagrams showing exactly where each bead of sealant or strip of tape must be placed for every trim condition, panel joint, and penetration detail. The installer must follow these diagrams precisely — moving a sealant bead even half an inch from its specified location can create a void in the air barrier or a dam that traps water instead of draining it.
Phase 6: Roof Panel Installation
IMP roof panels present a different set of challenges than wall panels. The panels are installed horizontally over open purlins — typically steel C-channels or Z-purlins spaced 4 to 6 feet on center — and they must provide not only thermal performance and weather resistance but also structural spanning capacity to carry dead loads, live loads (including snow and maintenance traffic), and wind uplift forces.
Roof Support and Structural Considerations
As Metal Construction News documents in its analysis of IMP roof systems, IMP roof decks are installed directly over open purlins — combining the deck and insulation into a single panel, eliminating the traditional build-up of corrugated deck, vapor barrier, rigid insulation, cover board, and membrane. This compression of the roof assembly is a major schedule advantage, but it requires that the purlin framing be precisely aligned and spaced per the IMP manufacturer's load tables.
Roof IMPs are typically lifted and positioned using battery-operated vacuum suction lifters attached to a crane or forklift. The panels are engaged at their side joints with finger-type interlocking connections and factory-applied butyl sealant in the bottom joint. Butt-end joints between panel ends receive field-applied sealant and scrim tape to maintain the air and vapor barrier continuity.
Critically, IMP roof panels are not designed to support concentrated point loads from rooftop equipment. As Metal Construction News explains in its analysis of roof penetrations, weight from HVAC units, exhaust fans, and other rooftop equipment must be transferred to the building's secondary framing members — not carried by the IMP. This requires sub-framing beneath curbs and equipment supports, which must be coordinated between the IMP installer, the steel erector, and the mechanical contractor. Equipment curbs that bear directly on the IMP without proper sub-framing will cause panel deflection, sealant failure, and eventual leaks.
Roof Penetrations
Every roof penetration — pipe flashing, exhaust curb, RTU curb, skylight frame, vent stack — requires careful detailing to maintain the IMP's thermal and weather performance. The penetration opening should be minimized to match the curb's inside dimension, and the curb flange must be sealed to the IMP face sheet with appropriate sealant and fasteners backed by structural members. All fasteners through the IMP top skin at penetration locations must have a backer (structural support beneath the panel) to provide long-term compression of the sealant where water exposure occurs. Supplemental insulation at curb walls is recommended to match the high R-value of the surrounding IMP field.

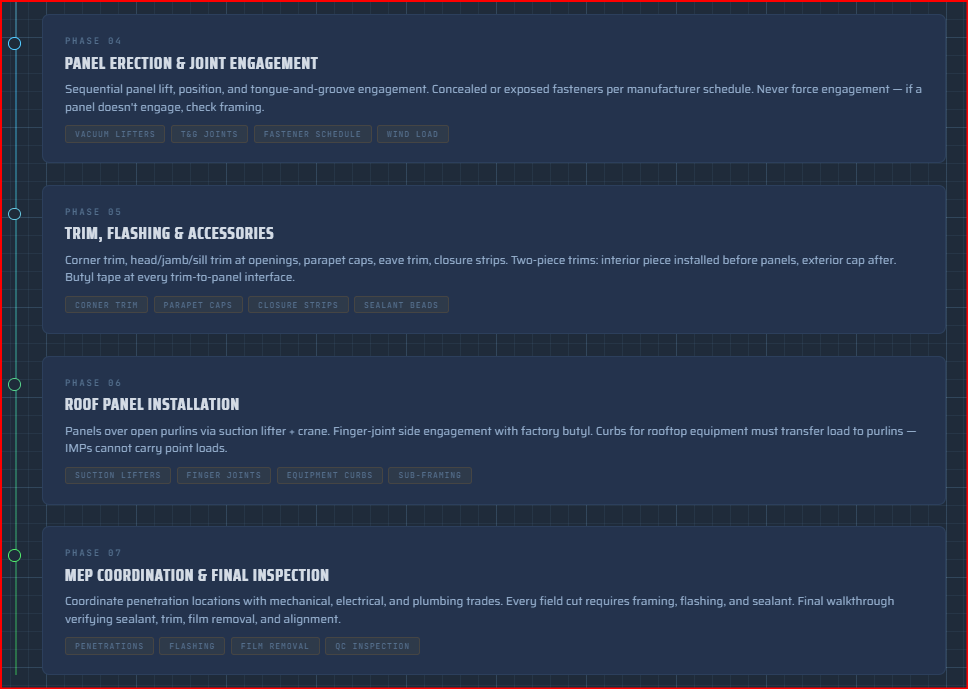

Phase 7: The Construction Sequence — Where IMP Installation Fits in the Project Timeline
On most commercial and industrial projects, IMP installation occurs after structural steel erection is complete (or substantially complete on the building elevation being panelized) and before interior trades begin work. The IMP envelope is typically on the critical path because interior trades — electrical rough-in, mechanical installation, plumbing, fire protection, framing, and finishes — cannot begin until the building is dried in. This means IMP installation delays translate directly into project schedule delays, and those delays have real cost consequences in general conditions, carrying costs, and opening date impacts.
Typical Sequencing
The standard construction sequence on an IMP-clad building follows this general order. Structural steel erection comes first — columns, beams, and the primary girt and purlin framing are erected by the steel contractor. Once a building elevation's structural framing is complete and accepted by the structural engineer, the IMP installer mobilizes to that elevation. Subgirts are installed (if not already installed by the steel erector). Base conditions and base trim are installed. Wall panels are erected from one corner of the elevation, proceeding sequentially to the opposite corner. As wall panels are completed on each elevation, trim and flashing are installed at corners, openings, eave, and base. Roof panels follow wall panels — typically beginning after at least two wall elevations are panelized to provide a working enclosure for the roof crew. Interior trades mobilize to completed and dried-in areas while the IMP crew continues on remaining elevations.
This overlapping sequence — where wall panels are being installed on one elevation while trim is being completed on another and interior trades are beginning work in dried-in areas — is one of the primary schedule advantages of IMP construction. A single IMP installation crew can provide progressive enclosure that keeps all downstream trades moving, rather than the traditional model where the building is completely closed before any interior work begins. TCG's construction management team coordinates this phased enclosure sequence with the structural steel erector, MEP contractors, and interior trades to maximize schedule compression without creating trade conflicts.
Coordination with MEP and Other Trades
The most common scheduling conflict on IMP projects is the interface between panel installation and MEP penetrations. HVAC louvers, exhaust fans, plumbing vents, electrical conduit penetrations, and gas piping all pass through the IMP envelope — and each penetration must be coordinated between the IMP installer and the responsible trade contractor. The ideal sequence is for penetration locations to be marked on the panels before or during installation, with the IMP crew pre-cutting openings where possible. The less ideal but common alternative is for MEP trades to field-cut penetrations after panels are installed — which requires careful coordination to ensure cuts are made in the correct locations and that proper flashing and sealant details are applied after the cut.
At TCG, we coordinate penetration layouts during preconstruction so that panel shop drawings include penetration locations, sizes, and framing requirements. This front-end coordination avoids the field conflicts that occur when penetration locations are determined after panels are already on the building.

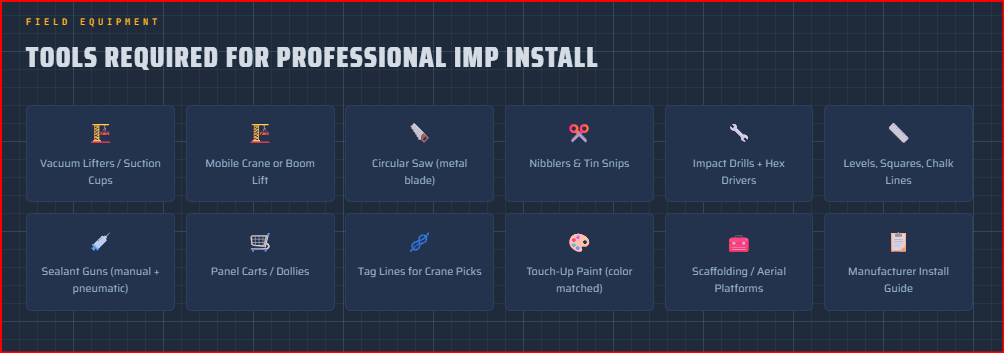

Tools and Equipment Required for Professional IMP Installation
A professional IMP installation crew requires specific tools and equipment beyond what a typical cladding or siding crew carries. Vacuum lifters — either battery-operated panel lifters or crane-mounted suction systems — are essential for handling panels safely and efficiently. A mobile crane or boom lift is required for panel placement on buildings above single-story height. Scaffolding or aerial work platforms provide access for trim installation and sealant application at height.
For cutting and fitting, crews use circular saws with metal-cutting blades (not abrasive cut-off wheels, which create sparks and hot metal particles that damage panel finishes), nibblers for cutting panel profiles without distorting the metal skin, and tin snips for trim work. Sealant guns (both manual and pneumatic), butyl tape applicators, and a variety of hand tools — levels, squares, chalk lines, tape measures, fastener drivers, and impact drills with hex-head and Phillips-head drivers — round out the standard toolkit.
Specialized equipment also includes panel carts or dollies for moving individual panels from the staging area to the lift point, tag lines for controlling panel rotation during crane picks, and touch-up paint matched to the panel color for repairing minor scratches or tool marks that occur during installation. The FALK accessory catalog includes tools and vacuum lifting systems specifically designed for IMP handling — and TCG's crews carry a full complement of manufacturer-specified tools on every mobilization.

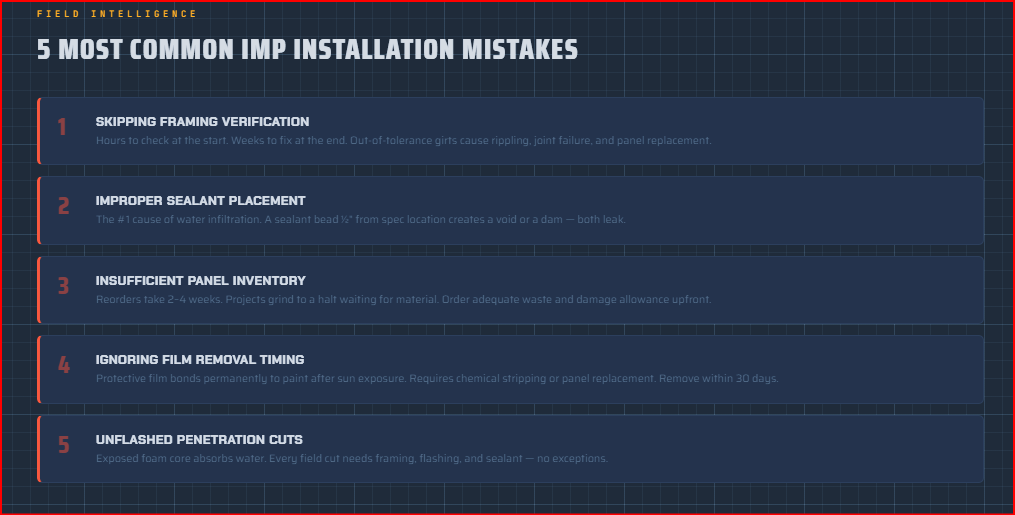

The Five Most Common IMP Installation Mistakes — and How to Avoid Them
After installing over a million square feet of panels across 38 states, these are the five installation mistakes we see most consistently — both on our own projects (where we catch and correct them in real time) and on projects where we're brought in to remediate another installer's work.
Skipping framing verification is the most consequential mistake. Crews that begin panel erection without checking girt alignment against manufacturer tolerances will produce a wall that looks wavy, performs poorly at the joints, and may require panel replacement. The fix takes hours at the beginning of the project; the consequence of skipping it takes weeks at the end.
Improper sealant placement is the most common cause of water infiltration in IMP walls. Sealant beads that are too thin, placed in the wrong location, or missing entirely at trim-to-panel interfaces create leak paths that are nearly impossible to diagnose and repair without removing trim. Following the manufacturer's sealant diagrams exactly — bead location, bead size, and number of beads per joint — prevents this entirely.
Insufficient panel inventory is the most preventable cause of schedule delays. The Green Span Profiles guide notes that projects can grind to a halt when crews run short of material and must wait for additional orders from the manufacturer. Panel lead times are typically 4 to 8 weeks from order, and reorders for damaged or short panels can add 2 to 4 weeks to the schedule. Ordering adequate material — including a reasonable waste and damage allowance — at the outset is essential.
Ignoring protective film removal timing causes cosmetic damage that is expensive to remediate. Panels shipped with protective film must have that film removed within the manufacturer's specified timeframe after installation — typically within 30 days and never after exposure to direct sunlight for extended periods. Film left on too long bonds permanently to the paint finish and requires chemical stripping or panel replacement.
Penetration cuts without proper flashing create long-term leak and corrosion problems. Every field-cut opening in an IMP wall or roof must be properly framed, flashed, and sealed — the cut edge of the panel foam core is exposed and will absorb water if not protected with metal flashing and sealant. Trades that cut penetrations without coordinating with the IMP installer for proper closure detailing create latent defects that will manifest as leaks months or years after occupancy.
