Structural Steel Erection Safety by Building Type (2026): Subpart R, Subpart M, and What Crews Actually Do
Structural Steel Erection Safety by Building Type (2026): Subpart R, Subpart M, and What Crews Actually Do
A two-man connector pair on a Mid-Atlantic data-center frame paused work at 7:40 AM in early March because the morning fog had not burned off enough to see the column lines clearly from the iron. They sat on the cherry-picker basket and waited 25 minutes. The site safety manager logged it as a stoppage. The PM flagged the lost time. The crew lead — an ironworker with 22 years of steel erection — said the same thing he says every time someone questions a call like that: you can find another 25 minutes; you cannot find another connector. Subpart R is built around that math.
Steel erection is the highest-fatality phase of most commercial construction projects. OSHA Subpart R (29 CFR 1926.750-761) was written specifically to address it — separate from the general fall protection rules under Subpart M — because the work involves hazards that do not apply elsewhere on the site. Connectors riding the iron. Decking crews working at the leading edge. Column anchorage that has to resist eccentric loads before the structure is braced. The rules look strange to an outside observer because they are built around what crews actually do, not around an idealized work environment.
What follows is a working summary of how Subpart R applies across the major commercial building types we see — conventional multi-story steel, OWSJ warehouse and big-box, PEMB, and steel-on-tilt-up — and where the risk profile shifts as the building changes shape. This is field guidance for owners, GCs, and PMs trying to understand why their steel erector's safety budget looks the way it does. It is not legal advice and it does not replace a licensed safety professional or your AHJ's interpretation of OSHA standards. For related cost-of-construction reference, see our PEMB cost guide, our cold storage construction cost piece, and the IMP installation guide.
Subpart R vs Subpart M: How They Interact
The simplest framing: Subpart M is the general construction fall-protection rule (6-foot trigger, conventional fall arrest required at and above that height). Subpart R is the steel erection rule, and it carves out specific exceptions for steel erection activities where conventional fall protection would create greater hazard than the work itself. On a steel erection site, both rules are in play simultaneously — Subpart R takes precedence on activities it covers, Subpart M applies to everything else (delivery yard, decking storage, post-erection trades).
The Subpart R exceptions are narrow and site-specific. They include: connector exemption between 15 and 30 feet (or below the second floor), controlled decking zone for decking crews at the leading edge, and certain custody-of-the-load procedures during multiple-lift rigging. Each exception requires documentation, training, and physical site setup to legally apply. OSHA's 2024 Top 10 enforcement data shows the most common Subpart R citations are not field safety failures — they are paperwork failures: missing erection plan, undocumented training, or perimeter cable removed without proper CDZ setup. Subpart R was developed under the Steel Erection Negotiated Rulemaking Advisory Committee (SENRAC) — meaning the rules came out of structured negotiation between OSHA, organized labor (notably the Iron Workers), and the steel erector industry, rather than top-down agency rulemaking.
Building-Type Risk Profiles
The fall protection program on a steel erection job is not generic. It is engineered to the specific structure being built. A 6-story office tower, a 240,000 SF distribution center, a PEMB cold storage box, and a TI mezzanine in an occupied warehouse all see steel erection — but the risk geometry, exposure duration, and engineered fall protection costs differ dramatically. Bars below show approximate steel-erection fatality risk concentration per project across the six building types, normalized to ironworker-hours.
Multi-Story Conventional Steel
Highest exposure (height + duration) but also highest investment in fall protection. Perimeter cable at every level. CDZ during decking. Connector exemption used at lower floors only. PFAS dominant at 30+ ft.
OWSJ Warehouse / Big Box
Disproportionate fatality rate per project. Ironworkers walk bare joists during placement and bridging. Joist stability before bridging is a critical risk window. Personal fall arrest with overhead anchors.
PEMB (Pre-Engineered Metal Building)
Sequence-driven risk. Column climbing, rafter set, and purlin run installation are the high-risk windows. Stability profile changes hourly as framing goes up. Site-specific JHA must be revised through erection.
Steel-on-Tilt-Up
Joist seats and lateral framing installed against finished concrete envelope. Limited overhead anchorage points. Mobile elevating work platforms (MEWPs) and engineered horizontal lifeline systems become primary fall protection.
Mezzanine Steel (TI / Adaptive Reuse)
Often the riskiest steel work on a project per ironworker-hour because it is installed inside an occupied or partially occupied building. Lift access constrained. Surrounding finishes limit anchor points. Subpart R still applies.
Mass Timber + Steel Hybrid
Emerging system. Steel braced frame or moment frame inside CLT/glulam structure. Sequencing and overhead anchorage planning during steel install before timber panel placement is critical risk window.
On a 240,000 SF Sunbelt distribution center with an open-web steel joist roof structure, the original erection plan called for ironworkers to walk bare joists for bridging installation — standard practice and code-compliant under Subpart R when properly trained ironworkers are doing the work. The site safety manager pushed for an alternative: pre-bridged joist sets staged on the ground in 4-joist groupings, lifted as stable assemblies, and connected with a single set-and-bolt operation per group. Cost: $58,000 in additional crane time and rigging. Time saved: roughly 4 days on the joist phase. Joist-walk hours eliminated: approximately 280 ironworker-hours at the most exposed activity on the project. The OSHA risk was transferred from ironworker exposure to lift risk, which the crane crew was already managing inside a controlled lift plan. Net: $58k spent to eliminate 280 hours at the highest fatality-rate activity on the build. Cheap insurance. This is exactly the kind of preconstruction trade-off our preconstruction team evaluates with clients before erection begins.
The Six Highest-Risk Steel Erection Activities
Subpart R organizes its rules around specific high-risk activities rather than around building types. Understanding which activity is creating the exposure on a given day is the first step in matching the right fall protection program to the work.
Connecting (Riding the Iron)
Ironworkers placing structural steel members and bolting up at heights. Subpart R allows narrow alternatives between 15-30 ft. Above 30 ft, conventional PFAS required. Most exposed activity per ironworker-hour on multi-story work.
Decking at Leading Edge
CDZ governs. Decking placed and immediately secured to specified spans. Workers within zone exempt from conventional fall protection only if zone properly set up and only trained CDZ workers enter. Reference: 1926.760.
Joist Walking (OWSJ Buildings)
Ironworkers walking bare joists during placement and bridging. Joist stability before bridging installation is the critical safety window. Pre-bridged joist sets a common engineered alternative. SJI bridging guidance applies.
Column Anchorage Verification
Per 1926.755 every column needs at least 4 anchor rods with 300 lb eccentric load capacity at 18 in. from column face. Verify before column is set. Foundation strength before erection load is the top historical collapse cause.
Multiple-Lift Rigging
Lifting multiple structural members on a single crane pick. Subpart R 1926.753 specifies the procedure — only trained riggers, max 5 members per pick on most configurations, specific rigging hardware, custody-of-load protocol.
PEMB Purlin Run Installation
Ironworkers installing secondary framing on top of primary frames. Stability of secondaries before bridging is critical. Sequence-specific JHA. Engineered fall arrest from primary rafters typical. MBMA Common Industry Practices applies.

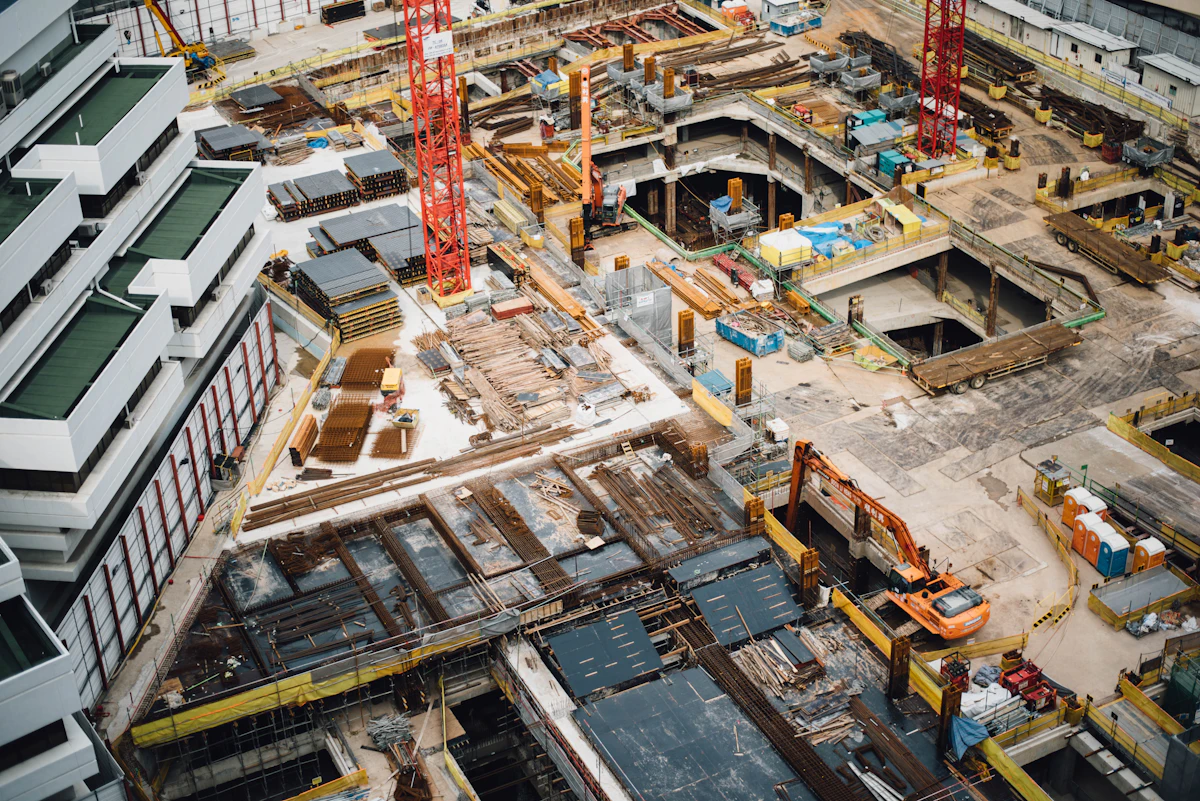

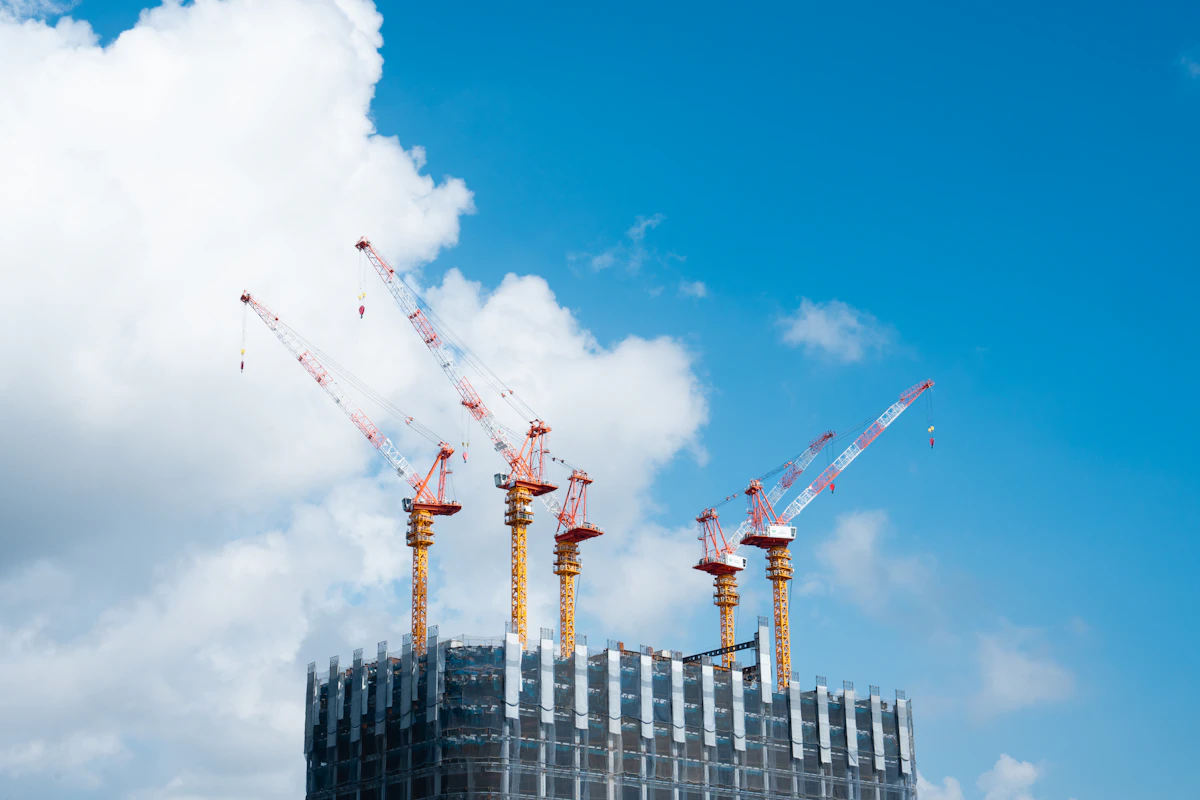

Conventional Multi-Story Steel: Where the Standards Were Written
If you read Subpart R with no field experience, it sounds like it was written for a 12-story office tower in dense urban infill — and it largely was. The connector exemption, the CDZ, the perimeter cable cycle, the multiple-lift rigging procedure all assume the kind of work that happens on a multi-story conventional steel build. Office, hospital, hospitality, and increasingly multi-family Type II construction all fit this profile. The American Institute of Steel Construction (AISC) Code of Standard Practice is the reference document for what the structural steel community expects from erectors on these projects.
The fall protection program on a typical 6- to 12-story conventional steel job is structured around a perimeter cable system installed one floor below the active erection floor, a controlled decking zone for the deck crew at the leading edge, PFAS for ironworkers above 30 feet (and for connectors above 30 feet who do not qualify for the narrow exemption), and net systems below the work area on tighter sites. A typical engineering and rental cost for this fall protection program runs $0.65 to $1.20 per SF of building footprint over the steel erection duration.
Open-Web Steel Joist (OWSJ) Big-Box and Warehouse
OWSJ buildings — the typical 100k-500k SF distribution centers, big-box retail, and Sunbelt logistics buildings — have a different safety geometry. The structure is mostly columns, primary girders, and open-web steel joists with bridging. Ironworkers walk the joists for placement and bridging, which is permitted under Subpart R when proper training and procedures are documented. But the fatality rate per project on OWSJ erection is disproportionate to the project count, because the joist-walking activity has limited engineered fall protection options and depends heavily on training, equipment, and attention. Steel Joist Institute (SJI) bridging and erection guidance is the standard reference.
The mitigation that has gained traction in 2025 and 2026 is pre-bridged joist sets — joists assembled into 3- or 4-joist stable groupings on the ground, lifted as a unit, and set as a stable assembly. The cost is $30k to $90k of additional crane and rigging time on a typical 240k SF project, and the safety benefit is substantial: ironworker exposure on bare joists drops by 50 to 80 percent. We see this approach more on owner-driven projects where the owner has explicit safety performance metrics in the bid documents — exactly the kind of upstream specification our owner's rep team writes into RFPs on behalf of clients. For broader logistics-facility cost context, see our 3PL warehouse construction cost guide.
PEMB Erection Safety: Sequence Is the Plan
PEMB erection has a different safety model than conventional steel. The building goes up sequentially — primary frames (columns and rafters) first, braced temporarily, then secondary purlins and girts, then bridging, then panels and IMP. Each phase has different stability characteristics and different safe work areas. The job hazard analysis on Tuesday morning may not be valid Tuesday afternoon as the framing changes. PEMB erection plans should call for end-of-day briefings to reset the next day's JHA based on actual structural state.
The high-risk windows on PEMB erection are: primary column climbing (during initial set when no overhead anchorage exists), rafter walking during connection (when only the primary frame is in place), purlin run installation (when secondaries are unstable), and IMP panel hanging (when the envelope is being installed against the secondary framing). TCG self-performs PEMB erection in 38 states and runs a PEMB-specific written safety program that is distinct from our conventional steel oversight protocol. Reference: MBMA Common Industry Practices. For PEMB cost benchmarks, see our PEMB cost per square foot guide.
On a 78,000 SF Mountain West cold storage PEMB build, the erection schedule had primary frames and secondaries installed in two-week sweeps, with IMP panels following one frame line behind. The crew lead caught a junior ironworker reaching across a partially installed purlin run to pass a tool to another worker — a six-foot reach across structurally unstable secondary framing. He stopped the crew, called a 15-minute reset, and walked through the JHA again with all four ironworkers on that frame line. The reset cost roughly 45 minutes of erection time. The reach across the purlin would have been the kind of fall that ends with a fatality investigation. The site PM logged the stoppage as a "near-miss intervention" — the kind of event that should never get celebrated but also never get punished. We try to build a culture where stopping work for a reset is treated the same as completing a frame line on schedule.
Vertical Safety Culture from Frame to Envelope
TCG's PEMB, IMP, roofing, and flooring self-perform crews work under one safety culture. On conventional structural steel, our CM, owner's rep, and structural engineering teams provide oversight to AISC-certified erectors. One coordinated site safety program from primary frame through final envelope.
Cost of Doing Steel Erection Safely
| Building Type | Typical Engineered Fall Protection Cost | Primary Cost Drivers |
|---|---|---|
| Multi-story conventional steel (6-12 story) | $0.85-$1.20/SF footprint | Perimeter cable, leading-edge protection, CDZ setup, PFAS rental, net systems on tight sites |
| OWSJ warehouse / big box (100k-500k SF) | $0.55-$0.85/SF footprint | Overhead anchor systems, MEWP rental for bridging, engineered horizontal lifelines |
| PEMB cold storage / industrial | $0.45-$0.75/SF footprint | Engineered anchor design from primary rafters, MEWP for purlin install, sequence-specific JHA |
| Steel-on-tilt-up | $0.65-$1.00/SF footprint | Engineered horizontal lifeline integrated with concrete embeds; MEWP-heavy for joist seat install |
| Mezzanine steel (TI in occupied building) | $1.25-$2.50/SF mezzanine footprint | Limited lift access, surrounding-finish protection, tighter PFAS anchor planning, after-hours work premium |
| Mass timber + steel hybrid | $0.95-$1.40/SF footprint | Sequence coordination cost, panel-installation overlap planning, mid-rise perimeter system |
TCG Self-Performs PEMB Erection Across 38 States
One safety culture, vertical scope from primary frame through IMP envelope. Talk to a TCG project executive about your industrial, cold storage, or PEMB build.
The Erection Plan Owners Should Ask to See
Subpart R 1926.752(e) requires a written site-specific erection plan on most commercial steel projects. Owners and developers should ask to see this plan before steel erection begins, not because they need to second-guess the erector but because the document itself is a leading indicator of how the erector approaches safety. A thin plan ("erection will follow standard ironworker practice") is a red flag. A well-developed plan walks specific sequence, anchor strength documentation, fall protection systems by phase, ironworker training verification, and emergency response procedures. AISC's Certified Erector Program standards are the de facto reference for what a complete plan looks like.
The plan is a working document — it gets updated as conditions change in the field. A good erector will reference it during JHA reviews, toolbox talks, and incident debriefs. An erector who hands over a plan at preconstruction and never references it again is treating the plan as a permit application, not as a safety tool. AGC of America publishes contract-administration guidance that aligns with this view: the safety plan is a contract document, not a compliance artifact.
What Goes Wrong: Common Subpart R Citation Patterns
OSHA's enforcement data for FY2024 shows the most-cited Subpart R items are not what most people would guess. Field safety failures (a connector without PFAS, a worker on bare joists without training) get attention because they are visible. But the most-cited items in the inspection record are paperwork failures.
- Inadequate or undocumented training (1926.761). Training did happen but the documentation was missing or incomplete. The fix is a structured training matrix maintained at the site office, not in someone's email.
- Missing or incomplete site-specific erection plan (1926.752(e)). Plan exists but does not address the specific work being performed, or has not been updated as conditions changed. The fix is treating the plan as a contract document with required updates at each phase boundary.
- Perimeter cable removed without proper CDZ setup. Decking crew removed cable for production efficiency without establishing the CDZ procedurally. The fix is field discipline plus written CDZ setup documentation before cable comes off.
- Column anchorage not verified before set (1926.755). Foundation grout strength not documented or anchor count not field-verified before column placement. The fix is a column-set checklist signed by both erector and GC superintendent.
- Multiple-lift rigging procedure not followed (1926.753(e)). Untrained rigger or load count exceeded. The fix is rigger certification verification and a daily lift plan that includes multi-lift authorization.
The cheapest steel erection safety dollar is the one spent before erection starts.
Most steel erection safety failures we have seen on projects we have taken over from prior GCs trace back to one of three upstream decisions: an erection plan that was not site-specific, a fall protection scope that was bid by exclusion (the GC assumed the erector carried it; the erector assumed the GC did), or a sequence that was not coordinated with the rest of the trades. None of those are field problems. They are preconstruction problems that show up as field problems six weeks after erection starts.
The fix is not more field oversight, although that helps. The fix is treating the steel erection plan as a contract document. Reviewed in preconstruction. Reviewed by the steel erector, the GC, the structural engineer, and the project safety manager. Updated as conditions change. Referenced in every JHA and toolbox talk through erection. We have never seen a serious steel erection incident on a project where the erection plan was being actively used as a working document by the field crew.
Counter-view: experienced erection crews work safely without a plan in hand because they have been doing it for 25 years. Acknowledged. But the plan is not for them — it is for the new ironworker on day three of their first commercial erection job, who needs to know what the team has agreed to do before they get up on the iron. And it is for the OSHA inspector, who will ask to see it within the first 30 minutes of any incident response.
Building Industrial, Cold Storage, or Distribution With Structural Steel?
TCG runs design-build delivery and PEMB erection aligned to your project's safety scope. From site-specific erection plan through final envelope — one coordinated safety culture across the vertical work.
Need Steel Erection Coordination That Aligns With Your Project's Safety Scope?
TCG's preconstruction, owner's rep, and construction management teams have run Subpart R compliance verification on PEMB and conventional steel projects across 38 operating states. We can review your erector's site-specific plan, model fall protection cost against project geometry, and align trade sequencing to compress high-risk activity windows. Most owners save the engagement fee at the bid review stage.
Structural Steel Erection Safety FAQ (2026)
What is the difference between OSHA Subpart R and Subpart M?
What is a controlled decking zone (CDZ)?
What is a connector and what fall protection are they exempt from?
What building types have the highest steel erection risk?
When is column anchorage strength a Subpart R issue?
What is the cost impact of steel erection safety compliance?
How does PEMB erection differ from conventional steel for safety planning?
Is a site-specific erection plan required for steel work?
What training does an ironworker need for steel erection?
Can perimeter cable be removed during decking?
Does AISC erector certification matter for steel erection safety?
What is multiple-lift rigging and why is it regulated separately?
Does TCG self-perform structural steel erection?
- OSHA 29 CFR 1926 Subpart R — Steel Erection (1926.750-761)
- OSHA 29 CFR 1926 Subpart M — Fall Protection (1926.500-503)
- 29 CFR 1926.755 — Column Anchorage
- 29 CFR 1926.760 — Fall Protection in Steel Erection
- 29 CFR 1926.761 — Training Requirements
- 29 CFR 1926.753 — Hoisting and Rigging (Multiple-Lift)
- OSHA Top 10 Most Frequently Cited Standards FY2024
- DOL Civil Penalty Inflation Adjustment Final Rule, January 2026 ($16,550 serious / $165,514 willful or repeat)
- Steel Erection Negotiated Rulemaking Advisory Committee (SENRAC) history — Subpart R was developed under SENRAC
- American Institute of Steel Construction (AISC) — Code of Standard Practice for Steel Buildings and Bridges
- AISC Steel Erector Certification Program standards 2024-2025
- Steel Joist Institute (SJI) — Bridging and erection guidance, 44th Edition
- Metal Building Manufacturers Association (MBMA) — Common Industry Practices for PEMB erection
- International Union of Operating Engineers (IUOE) — Crane operator certification standards
- International Association of Bridge, Structural, Ornamental and Reinforcing Iron Workers — Apprenticeship and training program standards
- Associated General Contractors of America (AGC) — Construction safety contract administration practice
- Associated Builders and Contractors (ABC) — Safety Training Evaluation Process (STEP) data
- NIOSH Construction Sector — Fatal occupational injury data 2022-2024
- Engineered fall protection rental quotes from regional safety equipment vendors Q1 2026 across Mountain West, Sunbelt, and Northeast
- TCG project safety data on PEMB erection across 38 states, 2022-2026, and on subcontracted conventional steel erection oversight, 140+ projects same period
